The Travel Coach Tires 11R22.5, the Bus Tire with Four Straight Grooves Tread
Features
With four straight grooves, that is benefited the water draining, lower rolling resistance and comfort ride, this travel coach tires of 11R22.5 is suitable for all-axle position for travel coaches and urban buses running with high speed on the subways and other good grade roads, of which is available in 10 sizes with 22.5-inch rim diameters, and the width of tread is ranging from 9R22.5 to 295/80R22.5.

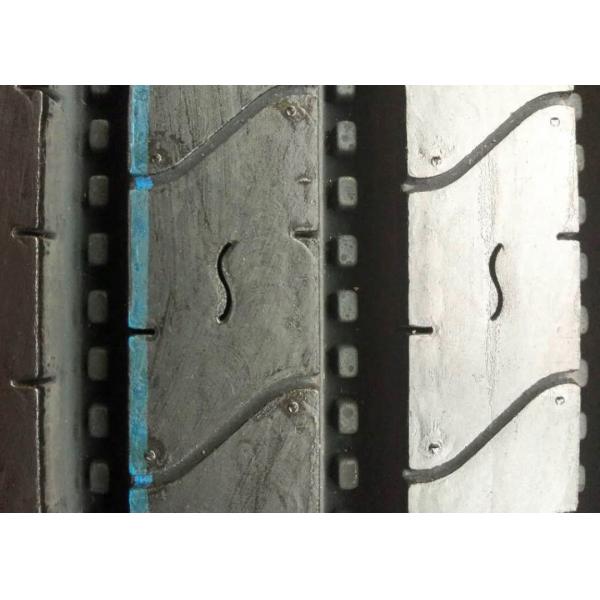

For the promoting the wet grip performance and reducing the uneven wear of this travel coach tire of 11R22.5, the combined designs of the steel blades on the side wall of the draining grooves and S shape sipes on the tread surfaces being applied.
The application with advanced technology to increase the whole body dynamic balance of this travel coach tire of 11R22.5, with low eccentric wear providing, and increase tires’ service time and comfort ride.
The applied with tread compound of high wear resistance, ensures the long service time of this travel coach tire of 11R22.5.
And the stone ejected design in the bottom of grooves can effectively prevent the stone trapping in the grooves, and protect tread slab base being out of the punctured.
Specification
| Size |
Ply |
Load
Index
|
Speed
index
|
Standard
Rim
|
Max
load(Kg)
|
New tire inflated
Dimensions(mm)
|
Tube |
Operation
Norm
|
| Single |
Dual |
Section
Width
|
Overall
Diameter
|
| 9R22.5 |
14 |
136/134 |
M |
6.75 |
2240 |
2120 |
229 |
974 |
TL |
TRA |
| 10R22.5 |
14 |
141/139 |
M |
7.5 |
2575 |
2430 |
254 |
1019 |
TL |
TRA |
| 10R22.5 |
16 |
144/142 |
L |
7.5 |
2800 |
2650 |
254 |
1019 |
TL |
ETRTO |
| 11R22.5 |
14 |
144/142 |
M |
8.25 |
2800 |
2650 |
279 |
1054 |
TL |
TRA |
| 11R22.5 |
16 |
146/143 |
M |
8.25 |
3000 |
2725 |
279 |
1054 |
TL |
TRA |
| 11R22.5 |
16 |
148/145 |
M |
8.25 |
3150 |
2900 |
279 |
1054 |
TL |
ETRTO |
| 12R22.5 |
16 |
152/148 |
M |
9.00 |
3550 |
3150 |
300 |
1085 |
TL |
ETRTO |
| 275/70R22.5 |
16 |
148/145 |
M |
8.25 |
3150 |
2900 |
276 |
958 |
TL |
ETRTO |
| 295/80R22.5 |
16 |
152/148 |
M |
9.00 |
3550 |
3150 |
298 |
1044 |
TL |
ETRTO |
| 295/80R22.5 |
18 |
152/149 |
M |
9.00 |
3550 |
3250 |
298 |
1044 |
TL |
GB |
Speed index
|
Speed
Index
|
B |
C |
D |
E |
F |
G |
J |
K |
L |
M |
N |
P |
Q |
R |
| Km/h |
50 |
60 |
65 |
70 |
80 |
90 |
100 |
110 |
120 |
130 |
140 |
150 |
160 |
170 |
Application
WALSTONE is the leading tire specialist that is focused on providing high effective tire for the customers and increasing their efficient and profit margins, especially in the field of travel coach tires and urban bus tires.
This travel coach tire of 11R22.5 with four straight grooves, which have feature of excellent performance in wet grip ability, anti-uneven wear, low rolling resistance and high wear resistance, is the genuine tire part of the coaches and buses that been produced by the Golden Dragon, one of famous coach and bus manufacturer of China.
The performance of dynamic balance is an importance performance in the flied of coach and bus tire, non-dynamic balance of the coach tire will high rolling resistance of whole vehicle, the steering being less, and with low effective fuel, eventual cause relative part being damaged.
For the purpose to supply perfect dynamic balance performance tire and increasing the abrasion resistance, the improvement for the products and technology is continually, and WALSTONE be trusted with more professional.
